Accessories Machines

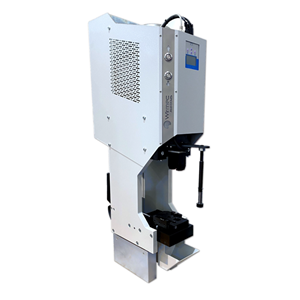

AM-0010S/12S
Crimping unit available in standard version and with electronic crimp height adjustment complete with crimp force monitoring and with centesimal crimp height gauge AM AM-0015 interfaced with Wirmec Vision HMI.
| Force: | 20 kN |
| Shut heigth: | 135.78 mm (+0.2 – 0.8 mm) |
| Stroke: | 40 mm |

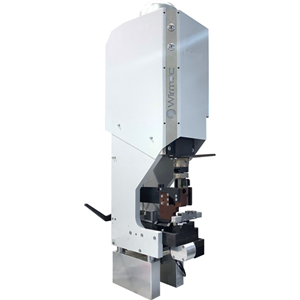

AM-0013S
Crimping unit up to 60kN for automatic machine with height adjustable suppot and quick applicator attachment.
| Force: | 60 kN |
| Shut heigth: | 135.78 mm |
| Stroke: | 40 mm |

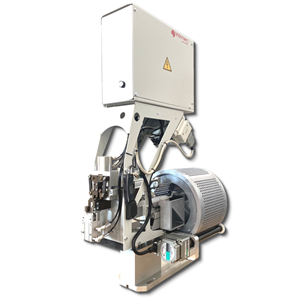

AM–0081
Automatic sleevs inserter unit 6.3, 4.8, 2.8. From experience gained over the years, Wirmec recommends the unit for only one type of coverfaston. The pull test device is provi- ded as an option.
| Sleeve: | 6.3, 4.8, 2.8 |
| Cycle time: | Circa 1s |
| Interchangeable: | No |

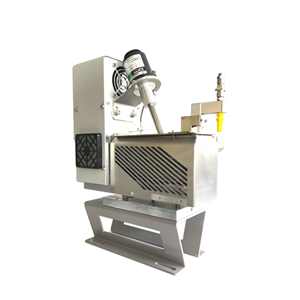

AM–0038
Automatic fluxing and tinning unit with programmable start. A set for cleaning the tank is provided and the fume extraction unit is optional.
| Wire cross section: | 0.03—1.5 mm² (AWG 32 - 15) |
| Strip length: | 1 - 12 mm |
| Tank capacity: | 7 Kg |
| Flux capacity: | 5 L |

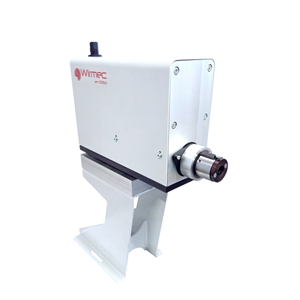

AM-0060
Twisting unit with fixed speed. It is supplied with three wire funnels customized on wire sample. There is the space space-saving version AM AM-0061 which can be installed on press also.
| Wire cross section: | Up to 2.5 mm² (14 AWG) |
| Strip length: | 4 -16 mm |
| Rotation speed: | Fixed |
| Rotation: | Clockwise and counterclockwise |
| Air supply: | Max 6 bar |
| Scraps: | Vacuumed and conveyored on scraps box |

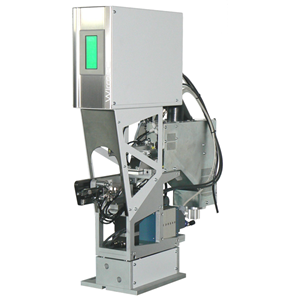

AM-0090
Programmable automatic seal inserter with possibility of changing the seal application kit and cable. Seal presence and position on wire unit could be installed as an option.
| Seal dimensions: | Ø est. Max 8.5—H8.5 mm |
| Cycle time: | ~ 1 s |
| Wire length: | Max 30 mm |

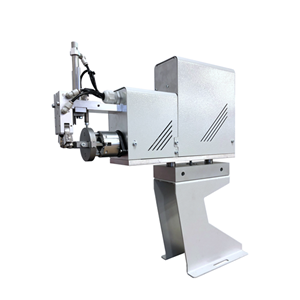

AM–0064
Twisting unit with speed and rotation programmable for precise wire processing.
| Wire cross section: | Up to 4 mm² (12 AWG) |
| Strip length: | 4 -16 mm |
| Rotation speed: | Programmable |
| Rotation: | Clockwise and counterclockwise |
| Air supply: | Max 6 bar |
| Scraps: | Conveyored on scraps box |

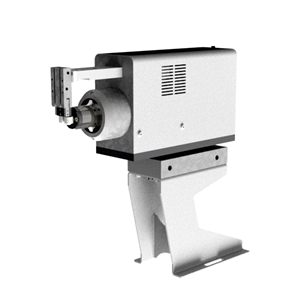

AM–0063
Programmable coaxial stripping unit for automatic machine, with scraps vacuum system. Suitable for stripping coaxial cable or cables with special insulation.
| Outside insulation diameter: | Max 5 mm |
| Strip resolution: | Min 0.05 mm |
| Stripping length: | 1 - 30 mm |
| N° strip level: | 3 |

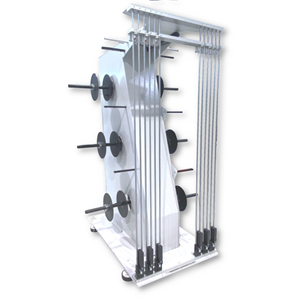

W908
Motorized six de-reeler with adjustable wires magazine. Suitable for fully automatic machines with multi multi-wire feeder.
| N° reels: | 6 usable simultaneously |
| Outside reel diameter: | 400 mm max |
| Width reel: | 220 mm max |
| Weigth reel: | 20 kg |
| Buffer: | 2 m |
| Speed: | 1 m/s |

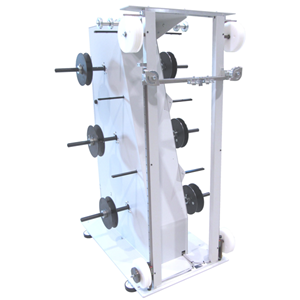

W909
De-reeler with 3+3 motorized reels with sorter and respective wire magazine. Such a unit is suitable for fully automatic machines with high productivity especially those with double wire feeder. The possibility, by selector, to operate the reel, allows you to have different types of wire always ready to use.
| N° reels: | 3+3 (1+1 usable simultaneously) |
| Outside reel diameter: | 400 mm max |
| Width reel: | 220 mm |
| Weigth reel: | 20 kg |
| Buffer: | 4 m |
| Speed: | 2 m/s |

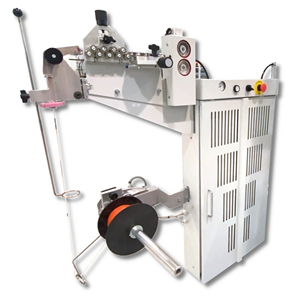

AM-0018
Integrated pre-feeder and de-reeler for AM310 quattro machine, designed to prevent stretching of very thin wires.
| N° reels: | 1 |
| Outside reel diameter: | 400 mm max |
| Width reel: | 220 mm max |
| Weigth reel: | 20 kg |
| Buffer: | 2 m |
| Speed: | 1 m/s |

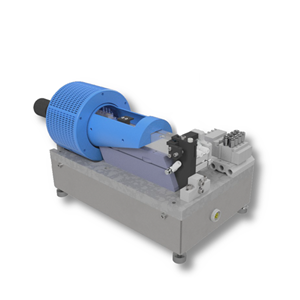

AM-0116
The AM-0116 unit is Wirmec's solution for processing loose ferule terminals for automatic machines. It is designed for use on cut strip & terminate machine and the tool is instaleed in the press like an standard applicator. It can be equipped with three additional kits to cover the full range of pre-insulated terminals.
| Wire cross section: | 0,5 - 1,5 mm² 2.5 mm² (kit optional); 4 mm² (kit optional); 6 mm² (kit optional); |
| Applicator stroke: | 40 mm |
| Cycle time: | ~ 1 s |
| Power supply: | 230 V 50/60 Hz |
| Air supply: | 6-7 bar |
| Air consumption: | ~2 l/min |
| Weight: | 4 kg applicator / 10 kg ferules feeder |
| Dimensions: | L150 x D300 x H200 mm (ferules feeder) |

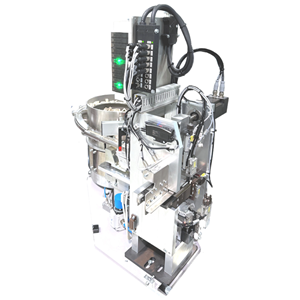

AM-0095
The Wirmec AM-0095 inserter allows crimped terminals to be inserted into the corresponding connector fully automatically. The device is in a stand stand-alone version, so it has an independent logic. Through the Wirmec Vision interface, programming the ways to be inserted and saving the processing to a recipe makes setup operations quick and easy. The device also features pull test.
| Housing: | 3 to 20 pins |
| Level of pins: | Max 3 |
| Housing feeder: | Vibrating unit or conveyor belt |
| Air supply: | 6-7 bar |
| Dimensions: | L400 x D300 x H700 mm |
